Deploy to a Quest device

This page describes how to deploy your Unity Project with MRTK3 onto a Quest device.

We strongly recommend using Meta Quest Link for rapid iteration and testing on Quest Devices, which allows for instant testing on the device without the need for compile + deploy.

Deployment Prerequisites

These steps are based around OpenXR as your runtime (i.e. XR plugin provider) as we don’t recommend using OculusXR due to underlying compatibility issues.

  1. Ensure that your project is ready to deploy on the Quest Device by following these steps.

  2. Ensure that developer mode is enabled on your device (you may need to join a developer team first). Installing the Oculus ADB Drivers is optional.

  3. Add MRTK to your project and ensure that your project settings are configured correctly to use the OpenXR pipeline and MRTK’s feature set. These features are required to deploy your project onto your Quest device.

    If starting from the template project, these project settings should already be configured for you.

  4. Navigate to File > Build Settings.

  5. Under Platform, select Android. Switch the platform to Android, and wait for the operation to finish.

  6. Navigate to Edit > Project Settings.

  7. Under Project Settings, navigate to XR Plug-in Management and enable OpenXR under the Standalone and Android tabs. Ensure that Initialize XR on Startup is selected and that no feature groups are enabled, and wait for the operation to finish.

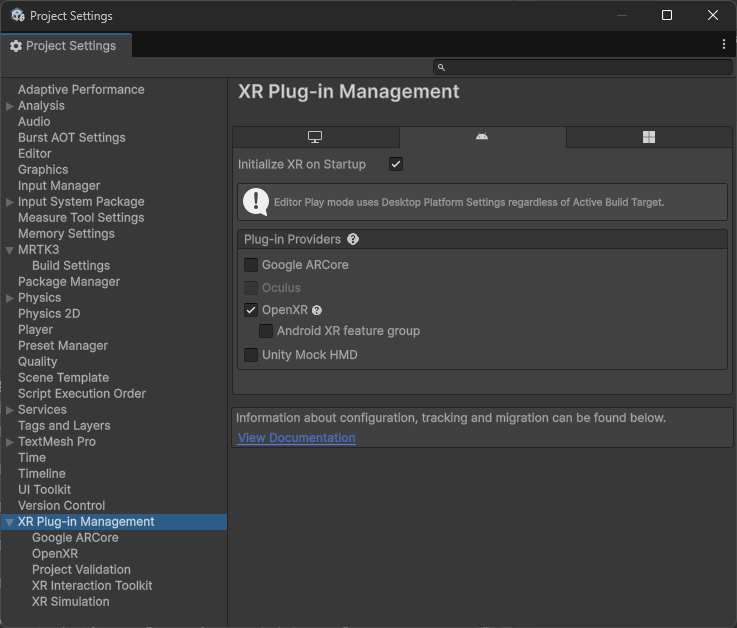

    Android XR Plug-in Management window

    A yellow warning icon may appear after checking the OpenXR option. Click that icon to open the OpenXR Project Validation tool. Click Fix All and ignore the interaction profile issue that can’t be auto-fixed. The profiles will be added in the step below.

  8. Under Project Settings, navigate to XR Plug-in Management > OpenXR > Interaction Profiles and ensure the following profiles are listed based on the MRTK features you’d like to use:

    Profile MRTK
    Hand Interaction Profile For articulated hand input
    Oculus Touch Controller Profile For controller input

  9. Under Project Settings, navigate to XR Plug-in Management > OpenXR > OpenXR Feature Groups and ensure the following features are checked under All Features based on the MRTK features you’d like to use:

    Feature MRTK
    Hand Tracking Subsystem For rendering the articulated hand joints
    Meta Quest Support For general Quest settings, like Android Manifest permissions
    Motion Controller Model For rendering the Touch controller models

    If you don’t see Motion Controller Model under the OpenXR Feature Groups panel, ensure the Mixed Reality OpenXR Plugin is imported into your project.

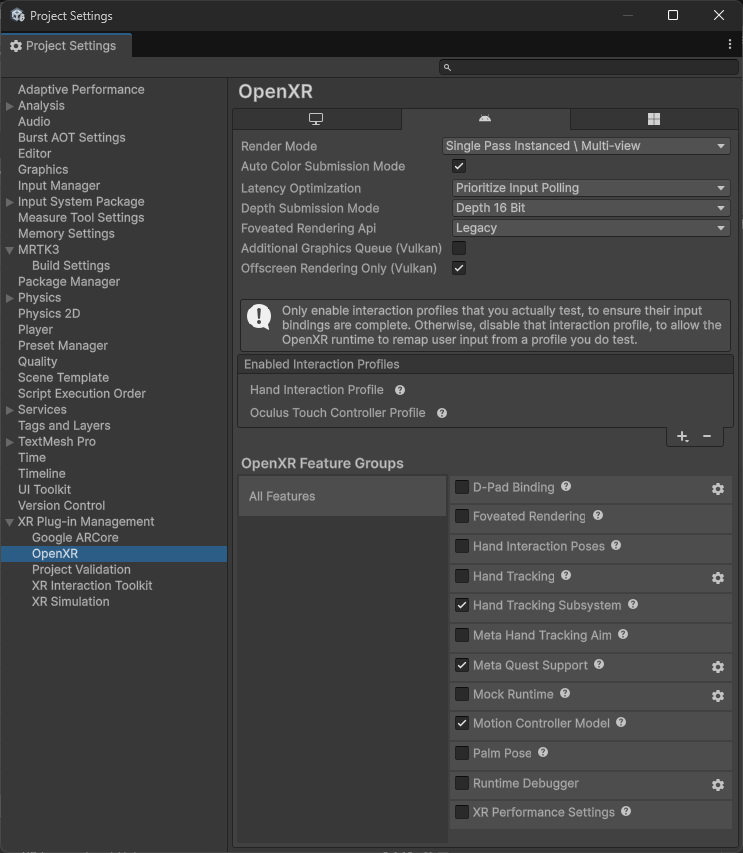

    Meta Quest OpenXR

    You can enable additional features as needed, but in-scene support for them will come from other packages, like AR Foundation.

  10. A yellow warning icon or red error icon may appear during this process. Click that icon to open the OpenXR Project Validation tool. Select Fix All to address the issues. There may be several items to address.

  11. If you plan on using the native keyboard, please refer to the keyboard documentation for a required AndroidManifest.xml modification.

Using platform controller models

Controller models are stored in a format that is not natively supported by Unity. To use MRTK Controller Visualization on Quest, you will need to make sure you have the following packages in your project:

  • glTFast importer which enables the use of glTF asset files in Unity and allows the use of MRTK Controller Visualization on Quest
  • KTX extension which allows users to load KTX or Basis Universal texture files

If you started with the MRTK3 template project, these packages have already been included in the project. If not, an MRTK project validation rule will help you import the packages.

Deploying to Device

After you have the project configured, proceed to generate, deploy, and run a build. We recommend that you select Build and Run. This option lets Unity deploy your project directly to your Quest device.
